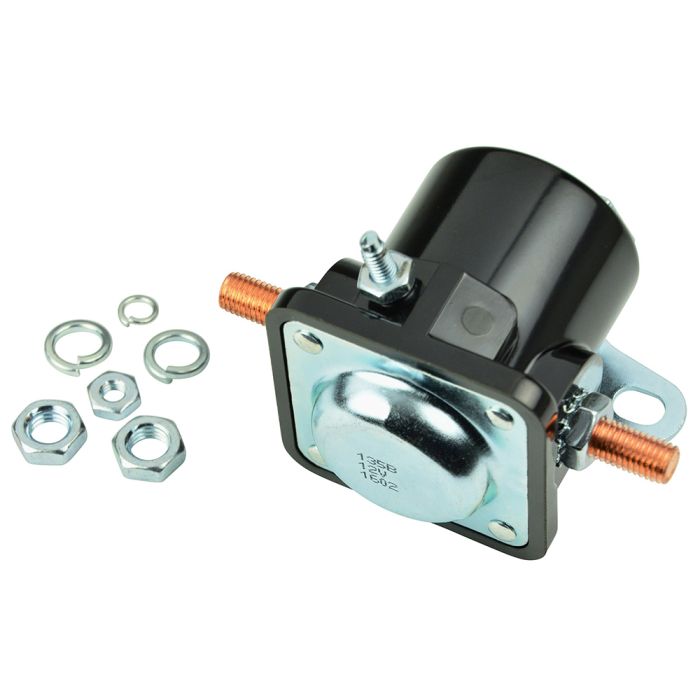

BEP 100A Engine Starting Intermittent Duty Solenoid MPN: 1002206
100A Engine Starting Intermittent Duty SolenoidIntermittent switching of high amperage loads with a low amperage on-off switch.Features:Rated at 750A make/100A break, this solenoid is for intermittent...
100A Engine Starting Intermittent Duty Solenoid
Intermittent switching of high amperage loads with a low amperage on-off switch.
Features:
- Rated at 750A make/100A break, this solenoid is for intermittent use only: 10 seconds ON, 20 minutes OFF (ideal for engine cranking)
- Signal voltage of 12V DC and contact voltage of 6-12V DC
- #10/32 thread signal terminals
- Copper 5/16”-24 thread contact terminals
- Bracket mounting holes 5/16” x 19/32”, 2-13/64” on center
- Same as Cole Hersee part number M-200
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Box Dimensions: 3"H x 4"W x 7"L WT: 0.8 lbs
- UPC: 870216046907
